    Stepper motor stepper motor ShD-5D1 MU3 (ShD-5D1 MU3; ShD5D1 MU3; ShD5D1MU3)
     Stepper motor
ShD-5D1 MU3 - a product designed to convert electrical pulses into discrete angular movements and achieve high performance, in particular, small angle step.
     Step size - 1.5
     Nominal pick-up - at least 2000shag / s.
     Maximum frequency:
     - By boosting of the resistor - 8000shag / s;
     - By e-boosting of - 16,000.
     Number of phases - 6.
     Mode - continuous.

Selsyns, rotary transformers, electric motors
stepper motors (DVSh, DSh-, DShI-, DShR-, ShD-)

Price:

on request



Product information updated 10 March 2024.

Found cheaper?

Let us know. Our price is the best.

Warranty:

12 months.

Warranty extension up to 5 years.

Terms of delivery:

To all regions of the country, international delivery.

Product information updated 10 March 2024.

Found cheaper?

Let us know. Our price is the best.

Warranty:

12 months.

Warranty extension up to 5 years.

Terms of delivery:

To all regions of the country, international delivery.

Technical characteristics

Stepper motor stepper motor ShD-5D1 MU3 (ShD-5D1 MU3; ShD5D1 MU3; ShD5D1MU3)

Stepper motor ShD-5D1 MU3 - a product designed to convert electrical pulses into discrete angular movements and achieve high performance, in particular, small angle step.
DC supply voltage resistive boosting of - от 40,8 V до 5,2 V.
Current in the phase winding mode, a fixed parking space (between 48V and included three phases) - от 2,9 A до 3,1 A.
Step size - 1.5
Nominal pick-up - at least 2000shag / s.
Maximum frequency:
- By boosting of the resistor - 8000shag / s;
- By e-boosting of - 16000shag / s.
Number of phases - 6.
Mode - continuous.
Weight - 2.2 kg.

Dimensions ShD-5D1 MU3 served in Figure 1.

ShD-5D1 MU3 dimensional drawing of the product

Figure 1. ShD-5D1 MU3 dimensional drawing of the product.

    Specifications ShD-5D1 MU3

    Degree of protection - JP44.
    The form of execution - JM4091.
    Insulation Class - F
    Stepper motors SM-5D1 MU3 allow static error of ± 27min mining step.
    Rated torque load is 0, 1N'm. A rated load moment of inertia - of 4 × 10 6 kg / m 2.

    Stepper motors ShD-5D1 MU3 have a maximum acceleration at a nominal supply voltage of at least 2800shag / s. Maximum static torque stepper motor stepper motor with ShD-5D1 MU3 at the moment of inertia of the load of 2 × 10 6 kg / m 2 and a different frequency control pulses have different torque Currently, the value is filed in Table 1.

Table 1.
Response frequency in Hz
Torque, N 'm
400
0.35
800
0.4
1000
0.45
1500
0.48
2000
0.5
4000
0.29
6000
0.2
8000 - 16000
0.1

Stepper motor ShD-5D1 MU3 is intended for use in the following conditions:
    - Environment temperature is from -45 º C and +40 º C;
    - Relative humidity at +15 º C - no more than 80%.
Rate the product: ShD-5D1 MU3
Number of views: 1394
Product rating: 4.3
Number of grades: 297
* rating and all product statistics are updated once a month; information is current as of 28 March 2024

Photos ШД-5Д

ShD-5D1 MU3 device image.

ShD-5D1 MU3 device image.

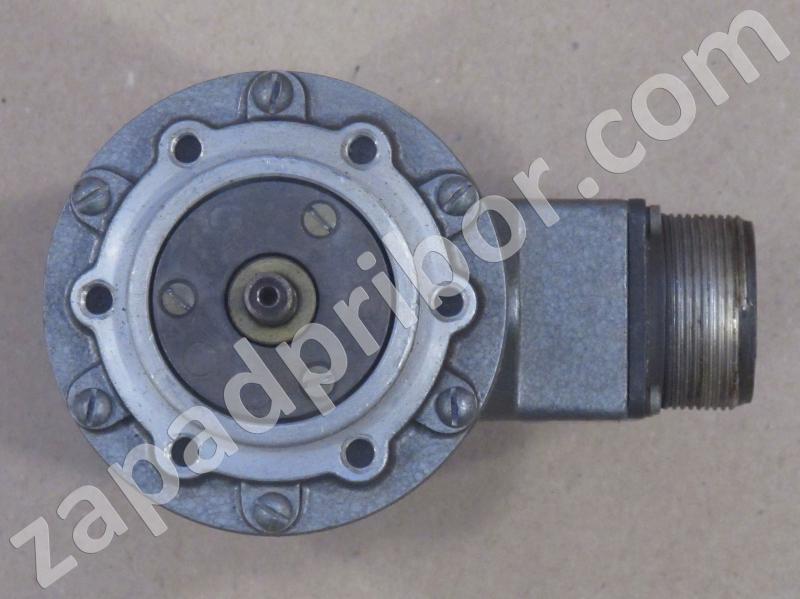

ShD-5D1 MU3 front view.
